Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Hot DIP Galvanizing Production Line: Discover our top-quality machinery for galvanizing production. We are a leading factory specializing in metallurgy equipment.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Machine Introduction
  • Machine Specification
  • Machine Features
  • Company Information
  • Market and Customers
  • FAQ
Overview

Basic Info.

Model NO.
KY-HD-40
Condition
New
Weight (Kg)
22000
Wire Diameter
0.9-1.6 mm
Zinc Coating Thickness
30-60 G/M^2
Number of Wires
40-70 Line
Wire Spacing
30 mm
Annealing Method
on Line Annealing
Wire Take-up System
Elephant Trunk or Inverted Coils Type
Zinc Layer Control
Wipe System
Dry Wire System
Waste Heat Recovery
Pickling System
Smokeless Environmental Protection
Transport Package
in The Container
Specification
ISO/ SGS
Trademark
KAIYE
Origin
Anping Hebei China
HS Code
854330009
Production Capacity
10set/Month

Product Description

Machine Introduction



Hot dip galvanized wire production line processes

Hot-dip galvanizing is one of the most effective means of slowing down environmental corrosion of steel materials. It involves immersing cleaned and activated steel products in a molten zinc solution and coating them with a well-adhered zinc alloy coating through the reaction and diffusion between iron and zinc.

Compared with other metal protection methods, the hot dip galvanizing process has unparalleled advantages in terms of the physical barrier and electrochemical protection of the coating, the strength of the bond between the coating and the substrate, the denseness, durability, maintenance-free and economic properties of the coating and its adaptability to the shape and size of the product.

Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Technical solution

Automatic spool wire pay-off system
Natural gas online annealing furnace
Overflow water cooling cleaning
Environmental protection pickling
Overflow water cleaning
Auxiliary galvanizing
Baking board drying treatment
Hot dip galvanizing
Clean
Water cooling
Trunk wire take-up system


Machine Specification


Hot dip galvanized wire production line specifications
Wire diameter
0.9--1.6 mm
Zinc coating thickness
30--60 g/m²
Number of wires
40--70 line
Wire spacing
30 mm
Annealing method
On line annealing
Zinc layer control
Wipe system
Wire pay-off system
Wire spool
Wire take-up system
Elephant trunk or inverted coils type


Machine Features



Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Wire pay-off system

The I-wheel paying off adopts a damping paying off frame, and the tray is equipped with a constant tension device to control the paying off tension, so as to make the steel wire walk smoothly and stably.

Natural gas online annealing furnace

It adopts natural gas eye brick annealing furnace, box steel structure, segmented bolt assembly of furnace body, welded steel structure of furnace body shell, good overall sealing performance, segmented assembly, reducing on-site installation time.

Water cooling tank

The cooling tank is used to control the temperature when the steel wire enters the pickling tank, ensure the stability of pickling
tank workers and clean the impurities on the steel wire surface.
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Smokeless pickling

Turbulent smokeless pickling is an advanced pickling technology. The steel wire cleaning process is in a completely closed pickling space, which is suitable for the rapid cleaning process of steel wire and meets the speed requirements of hot galvanizing.

Water cleaning tank

The secondary overflow cleaning method is adopted to eliminate the residual impurities and residual liquid in the steel wire
cloth. The cleaning room is made of 20 m thick high-strength PP material.

Wire drying

The drying of wire rod is completed by heating the flue gas in the baking plate, so as to achieve the effect of energy saving.
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line
Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

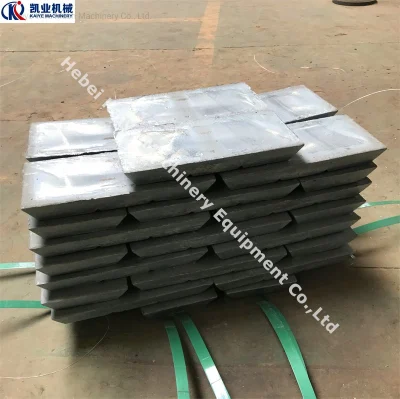

Zinc ingot

We can provide zinc ingots, and customers can also purchase zinc ingots from China or their own countries.

Zinc pot

Zinc pot is welded with 08 steel zinc pot special plate and has natural gas external heating structure. The temperature of zinc
pot is controlled by corrosion-resistant thermocouple.

Wire take-up system

The take-up system adopts elephant trunk take-up machine, and the winding is stable. The diameter of the take-up drum can be customized.


Company Information

Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Factory History
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.

Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: straight line wire drawing machine,Pulley wire drawing machine, wet drawing machine, Stainless steel wire drawing machine, Galvanized wire production line, Wire winding machine, Galvanized wire production line,And other wire drawing supporting machinery.

Factory R&D Team
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 8 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.

Market and Customers

Widely Used in Machinery and Metallurgy Hot DIP Galvanizing Production Line

Friends from all over the world
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.

After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.



FAQ


Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.

Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
