Basic Info.
Model NO.
SPS
Application
Milk, Yogurt, Cheese
Customized
Customized
Applicable in Industries
Harmaceutical ,Dairy ,Juice Chemical Solution
Core Components
Manufacturing Tank-Pre-Filter-Storage Tank
Function
Mixing and Dissolve One or Several Raw Material to
Feeding
Liquid/Powder+ Water (Solvent)
Output
Liquid Solution
Tank Layer
Single Layer /Double Jacket
OEM
Parameter Customization
Heating Model
Steam/Hot Oil/Hot Water/Electrical
Related Words
Mixing Tank System
Key Selling Points
High Effective / Turn-Key Solution for Mixing
Transport Package
Wooden Case Packaging/According to Customer
Specification
20L-30000L
Trademark
JOSTON
Origin
Wenzhou, China
HS Code
8479820090
Production Capacity
30 Sets/Month
Product Description

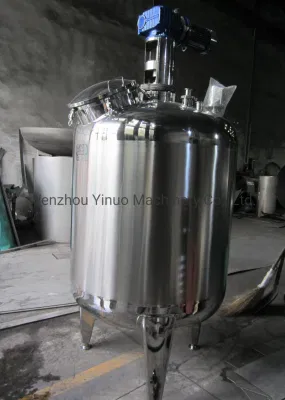

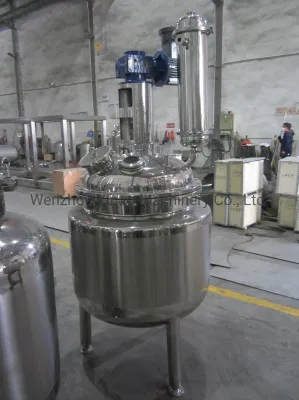

Stainless Steel SS304/316 Juice Milk Dairy Steam Heating Jacketed Automatic Liquid Homogenizer Mixing Tank Series is mainly used for the preparation in pharmaceutical field like sterile drugs,biological products,oral liquid ,eye drop ,syrup solution ,infustion solution,ampoule solution,injection solution and food ,juice ,milk ,dairy ,chemical product etc
Advantages:
1. Adopt aseptic design, no dead area, minimize residue.
2. PLC control of touch products, one key operation, direct and clear process flow chart, automatic liquid distribution and material transmission in the whole process; simple, convenient and user-friendly.
3. Equipped with automatic CIP online cleaning system and sip online sterilization system, the system can automatically online SIP and CIP, reducing production cost and old strength.
4. Automatic online abbreviation for filter integrity.
5. Automatic online real-time detection of weight and constant volume.
6. Automatic real-time abbreviation, recording and printing of all relevant data.
Technology Data for manufacturing tank :
| Item | Technology specification |
| Working volume L | 20-30000L |
| material | SS316L or SS304 |
| Tank structure | Single layer ,double layer |
| Jacket structure | Single full jacket ,limpet coil jacket ,dimple jacke |
| Jacket medium | Heating by steam ,hot water and electrical Cooling by chiller |
| Top mounted agitator | Propeller type agitator ,anchor type agitator ,scraper type agitator ,high shear emulsifying agitator |
| Bottom mounted agitator | Bottom magnetic type agitator ,bottom high shear emulsifying agitator |
| Equipment of tank | Manhole (handhole ),CIP spray ball,vent filter,sight glass,sight light ,safety valve ,sampling valve ,level snesor ,temperature sensor,pressure gauge,load cell,PH sensor ,PO2 sensor,foam sensor ,flush bottom valve ,VFD etc. *the equipment choose according to the production process requirement * |
| CIP/SIP system | Tank with the pipeline can be online CIP/SIP |
| Solution preparation system construction | Mixing tank +filter + transfer pump +storage tank +pipeline +control system |
The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products ofdifferent processes according to customer requirements.

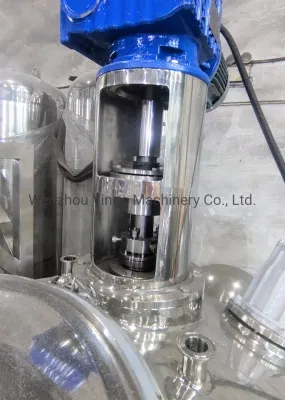

The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.
The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which fully conforms to GMP requirements.
According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
| Model | Volume(L) | Blending power(kw) | Blending rotation speed(r/min) | Homogenizing power(kw) | Homogenizing rotation speed(r/min) | Heating method |
| SPS-200 | 200 | 1.5 | 0~63 | 4.0 | 0~3200 | Steam heating Or Electric heating |
| SPS-500 | 500 | 3.0 | 0~63 | 7.5 | 0~3200 | |
| SPS-1000 | 1000 | 4.0 | 0~63 | 11 | 0~3200 | |
| SPS-1500 | 1500 | 5.5 | 0~63 | 11-15 | 0~3200 | |
| SPS-2000 | 2000 | 7.5 | 0~63 | 15-18.5 | 0~3200 | |
| SPS-3000 | 3000 | 7.5-11 | 0~63 | 18.5-22 | 0~3200 | |
| SPS-5000 | 5000 | 11-15 | 0~63 | 18.5-22 | 0~3200 |
Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
FAQ
Q :What about your factory?
A :Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
Q :How long the warranty will be?
A :We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
Q :Which kind payment do your company do now ?
A :We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
Q :Do you supply installation equipment in oversea?
A :Yes, if need, we can send our engineer to your plant to help you do installation and commission.
Q :How can we know the order production status ?
A :We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here.
Q :how about your company after-sale serivce ?
A :1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
