Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification

Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification - Your go-to solution for industrial air pollution control. Trust our factory expertise.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
XC-01
Treatment
Chemical Treatment
Color
Creamy-White/Grey
Life Span
10 Years
Features
Anti-Corrosion
Transport Package
Bare Wrapped
Specification
pp material
Trademark
XiCheng
Origin
China
HS Code
8421399090
Production Capacity
100000 Sets/Year

Product Description

Application of Green Facilities for  Exhaust Gas Treatment

Electronic industry, semiconductor manufacturing, PCB manufacturing, LCD manufacturing, iron and steel industry, metal plating and metal table surface treatment industry, acid pickling process, dye, pharmacy, chemical industry, deodorant, combustion exhaust gas SO * / NO * remove content of air pollutants and other water-soluble treatment.

Technical principle

Its basic principle is to use the contact between gas and liquid, and gas pollutants in transferred to liquid, then clean gas and contaminated liquid separation to achieve the purpose of the clean air.
The particulate pollutants in air after contact with the liquid detergent, liquid droplets or on liquid film diffusion on air particles, or humidifying in particles, particles by gravity, inertia, and so on, to achieve the purpose of the separation and removing. Gaseous pollutants is through turbulent flow, the phenomenon such as molecule diffusion and mass transfer and chemical reaction transmitted into the washing liquid and into the flow of gas separation. And can be added in the washing liquid chemicals to control gaseous odor material absorption way.

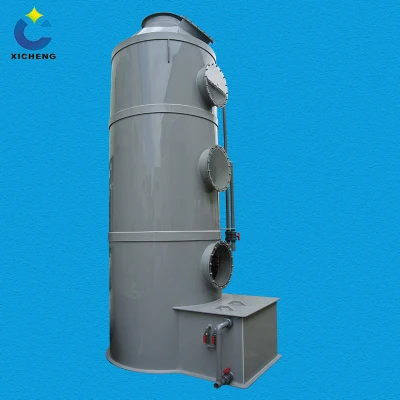

Treatment of Green Facilities--Exhaust Gas Purification Tower

Exhaust gas purification tower is widely used in chemical, pharmaceutical, oil and other industries the production process in the exhaust gas, waste gas, exhaust gas such as hydrogen fluoride, hydrogen sulfide, nitrogen oxides, sulfur dioxide, hydrogen chloride, chlorine gas, all kinds of acid fog, etc.


Technical Parameter Table:



Model


AirflowM3/h
Dimension (mm)

Efficiency


Power Kw
Diameter of Tower Body(Ø) Air Inlet Diameter(Ø1) The Tank Diameter(Ø2) Height of Tower Body(H)
LB-FT-1-500 1200 500 200 800 3500 90% 0.75*2
LB-FT-1-600 2000 600 200 1000 3500 90% 0.75*2
LB-FT-1-700 3000 700 300 1000 4000 90% 3.0*2
LB-FT-1-800 4000 800 300 1200 4000 90% 3.0*2
LB-FT-1-1000 5000 1000 400 1400 4500 90% 4.0*2
LB-FT-1-1200 6000 1200 450 1400 4500 90% 4.0*2
LB-FT-1-1400 8000 1400 500 1400 5000 90% 5.5*2
LB-FT-1-1600 10000 1600 600 1600 5000 90% 5.5*2
LB-FT-1-1800 15000 1800 700 1800 5500 90% 5.5*2
LB-FT-1-2000 20000 2000 800 2000 5500 90% 7.5*2
LB-FT-1-2200 25000 2200 1000 2200 6000 90% 7.5*2
LB-FT-1-2500 30000 2500 1000 2500 6000 90% 7.5*2


Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification
Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification

PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirements and drawings.
Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification



INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.
Spray Cleaning Tower + Activated Carbon Odor Absorber Waste Gas Purification

AFTER SERVICR
Our equipment will have a one-year life of quality assurance , repair and replacement are guaranteed.


COMPANY PROFILE
Shenzhen Xicheng Environmental Protection Technology Co., LTD.,located in Baoan District, Shenzhen City,Guangdong province,China.Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories. Our company has an excellent team with advanced service concept. We are committed to provide quality products and services to our customers in scientific management mode.
