Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Get reliable skid-mounted fuel dispensers and double wall petrol station tanks for safe and efficient fuel storage. As a factory, we guarantee top-quality products. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Function and Application
  • Technical Features
  • Main Accessories
  • Our Service
  • Company Profile
  • Certifications
  • Packaging & Shipping
Overview

Basic Info.

Type
Tank with Dispener
Storage Objects
Liquid, Fuel, Diesel, Gasoline
Product Name
Mobile Fuel Station
Color
Customer′s Request
Material
Carbon Steel
Tank Shape
Cylindrical
Feature
Safe and Economic
Warranty of Core Components
1 Year
Frame Shape
Rectangular
Video Outgoing-Inspection
Provided
Applicable Industries
Energy & Mining, Other, Transportation
Core Components
Pump, Tank, Dispenser
Key Selling Points
Easy to Operate
Capacity
5-60 Cbm
Medium
Diesel or Gasoline
Option
Generator
Application
Fuel Refueling
Transport Package
Nude Packing, or by Container
Specification
5, 000 liters -100, 000 liters
Trademark
Shengding
Origin
Shandong, China
Production Capacity
20 Units Per Month

Product Description

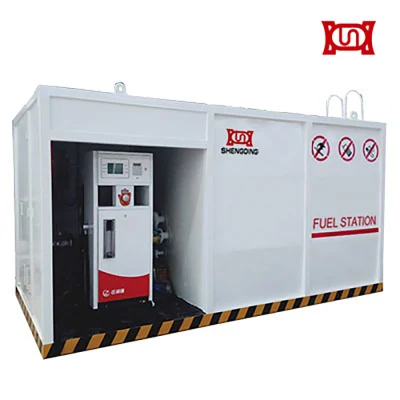

SHENGDING MOBILE FUEL STATION
Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Product Parameters



Specification

Total volume 5,000-40,000 liters, and can be customized.
S. No
Description of configuration
Specification
1
Explosion-proof storage tank
Total volume 5m3-40m3.
Tank steel Q235, submerged arc automatic welding process.
2
Lightning and static protection set
With electrostatic grounding device
3
Explosion proof materials
V-type explosion-proof material
4
Fuel dispenser
Dispenser equipped with pump and filling gun
5
Fuel loading system
Explosion proof fuel pump with flow rate of 38m3 / h
7
Liquid level measurement system
Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid
level alarm.
8
Airtight loading system
DN80 self-sealing ring valve is adopted for quick connection of oil loading port.
9
Discharging system
DN40 oil outlet pipe, equipped with maintenance protection device.
10
Emergency cut-off device
DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency.
11
Painting
The equipment is polished, derusted and degreased.
With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and
fireproof finish.
12
Other configuration
Anti-static system
Oil leakage detection device
Manual oil measuring system
Automatic fire extinguishing system
Emergency pressure relief device
Power supply system
Anti-overflow system
Lighting
Filter unit
Cleaning device
Safety auxiliary facilities
Door

Function and Application



Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage
Mobile fuel station is for the distribution of diesel and gasoline with tanks of variable capacity. It is composed of a container, divided into two main compartments, compartment for fuel tanks and compartment for pump and dispenser, and also provided with optional generator.



Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Technical Features



--- Fuel tanks of variable capacity, for diesel or petrol, also with option both diesel and petrol in one station.
--- Explosion-proof type to ensure safety.
--- Fuel loading system to load from fuel tank truck.
--- Top lockable hatches to get access to the manholes of tanks and refuel from above.
--- Separate compartment for generator or other equipment, complete with lockable door.
--- Leak detector systems and alarms (in case of double skin tanks).
--- Electric switchboard in the generator compartment.
--- Fuel level indicator
--- Emergency cut-off
--- Static grounding
--- Stainless filters
--- Lighting system
--- Optional generator to supply electricity power
Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel StorageExport Market Distribution:

Market Revenue(Previous Year) Total Revenue (%)
South America Confidential 5
Southeast Asia Confidential 10
Africa Confidential 5
Oceania Confidential 5
Mid East Confidential 2
Central America Confidential 3
South Asia Confidential 2
Domestic Market Confidential 68

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Plasma Cutting Machine No Information 1 5 acceptable
Bending Machine SANLI 1 6 acceptable
Shearing Machine QC12Y-6X4000 1 6 acceptable
Rolling Machine No Information 1 5 acceptable
Welding Machine ZX7-500S 15 2 acceptable

Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Pressure Gauge MINGYU 6 1 acceptable
Paint Film Thickness Gauge DT-156 1 2 acceptable
Ultrasonic Thickness Gauge TT130 1 2 acceptable
Industrial Radiographic Film Viewing Lamp GP-2000A 1 2 acceptable




Main Accessories



Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage




Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the tank, training how to use the filling station.
* Engineers available to service equipment overseas.
* Use online contact methods such as skype whatsapp wechat to provide online services to customers.






Company Profile

Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Certifications



Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage

Packaging & Shipping




Skid-Mounted Station Fuel Dispenser Fuel Container Double Wall Petrol Station Tank for Fuel Storage




1. Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.

2. What are your products?
Portable fuel station, Containerized fuel station, Oil storage tanks, Underground storage tanks, Oil containers.

3. What is the delivery time of your products?
The delivery time of oil storage tank is usually within 30 days, and fuel station is within 50 days. Please contact for details.

4. What is the MOQ?
Depands on different products, and can be negotiated.The larger the quantity is, the competitive the unit price will be.

5. How about the warranty rules?
Our warranty is one year after shipment. Within one year, we will send broken spare parts at our expense upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.

6. What documents do you offer?

A: We offer product quality certification issued by the manufacture, tank drawing, GA drawing, operation instructions and calculation sheet etc for each tank.
