Quad Band Fiber Active Das - Multi Distributed Antenna System

Looking for a reliable Quad Band Fiber Active Das - Multi Distributed Antenna System? Look no further! We are a factory that produces high-quality, efficient systems.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
AT53C00A/AT53B43A
Frequency Range
B1-B2-B3-B5-B7-B8-B20-B28
Technology
2g, 3G, 4G, 5g
Output Power
43±2dBm Per Band
Maximum Gain
55±3dB(Mu+Ru)
Transport Package
Wooden Case
Specification
980mm x 420mm x 230mm
Trademark
ACTION
Origin
China
Production Capacity
2000 Set/Year

Product Description


With the development of mobile communication technology, more and more new communication technologies (such as 5G) are being used nowadays. As a result, telecom operators have to run multiple systems simultaneously and provide multi-system services (2G/3G/4G/5G) in one coverage area, resulting in the difficulty of installation and transmission of equipments. For the above mentioned reasons, Multi-Band Fiber DAS is designed to solve the problems of weak mobile signal in the place that is far away from the BTS and has fiber optic cable network underground.

The system consists of two parts: Master Unit(MU) and Remote Unit(RU). The MU captures the BTS signal via direct coupler close to BTS, then converts it into optic signal and transmits the amplified signal to the RU via fiber optic cable. The RU will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

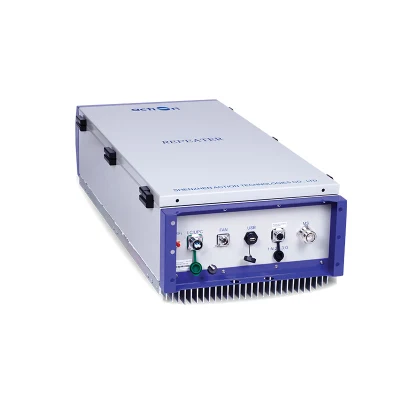

Quad Band Fiber Active Das - Multi Distributed Antenna System

Feature:
1. Aluminum-Alloy casing with IP65 protection for high resistance to dust, water and corrosion.
2. Supports 2G/3G/4G/5G, supports multi-bands and multi-operators
3. Adopting WDM module to realize long-distance transmission.
4. Tx/Rx control and alarm messages to be transmitted via one fiber optic cable.
5. One MU supporting up to 2 RUs to maximize utilization of fiber optic cable.
6. USB port provides a link to a notebook for local supervision or IP Based NMS (Network Management System) that can remotely supervise Repeater's working status and download operational parameters to the Repeater Via Etherne


Quad Band Fiber Active Das - Multi Distributed Antenna System

To expand signal coverage or fill signal blind area where signal is weak or unavailable.

Outdoor: Airports, tourism regions, golf courses,tunnels,factories,mining districts,villages,...
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots,...


Quad Band Fiber Active Das - Multi Distributed Antenna System


Quad Band Fiber Active Das - Multi Distributed Antenna System

Specification:


Items MU RU
Specifications
Frequency Band LTE1800&UMTS/LTE2100&LTE2600&5GNR TDD-3.5GHz
Working
Frequency
Uplink 1710~1785&1920~1980&2500~2570&3400~3600MHz
Downlink 1805~1880&2110~2170&2620~2690&3400~3600MHz
Transmission Distance ≤ 10km
Maximum Input Power(Non-Destructive) 10dBm
Maximum RF Output Power Uplink:-5±2 per Band Downlink:43±2dBm per Band(The Output Power of 5GNR is 40dBm)
System Gain 50±3dB(MU+RU)
Manual Adjustable Gain Range 0~30dB/Step 1dB
AGC ≥10dB
VSWR 1.5
Spurious Emission 9kHz~1GHz: ≤ -36dBm
1GHz~12.75GHz: ≤ -30dBm
EVM ≤ 8%@4G, ≤ 4.5%@5G
Noise Figure@1RU Connection 6dB
System Delay ≤ 5μSec
I/O Impedance 50Ω
Fiber Connector 4XFC/APC 1XLC/UPC
RF Connector 4XN-Female 1XN-Female
Optical Output Power 0±3dBm(1310nm) / -3±3dBm(1550nm)
Fiber Type/Number Single Mode
Optical Receiver Sensitivity ≥ -15dBm
Power Supply AC220V, 50/60Hz
Temperature Range -25°C ~ +55°C
Humidity ≤ 95% (Non Condensing)
Application Indoor(IP30) Indoor & Outdoor(IP65)
Dimensions 485mm x 350mm x 90mm 500mm x 440mm x 235mm
Weight 10kg 50kg
Mounting 19" Rack Mounted Wall or Pole Mounted

Quad Band Fiber Active Das - Multi Distributed Antenna System Quad Band Fiber Active Das - Multi Distributed Antenna System Quad Band Fiber Active Das - Multi Distributed Antenna System Quad Band Fiber Active Das - Multi Distributed Antenna System Quad Band Fiber Active Das - Multi Distributed Antenna System Quad Band Fiber Active Das - Multi Distributed Antenna System


Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Q3. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, and frequencies.

Q4. Delivery & Shipment Date:
3-30 days

Q5. Customized Frequency:
We can customize Single/Double/Triple/Quand/Penta Band for cellphone signal like 2G/3G/4G(GSM/CDMA/DCS/PCS/WCDMA/LTE, etc,)

Q6. Output Power & Coverage Areas:
20dBm: 500-1500m²
23dBm: 1500-2500m²
25dBm: 2500-4000m²
27dBm: 3000-5000m²
30dBm: 5000-8000m²
Coverage is related to local signal strength, please contact us with your local condition, we can offer the best solution.
