Plastic Spiral Wound Pipe Production Line

Welcome to our Plastic Spiral Wound Pipe Production Line factory. We specialize in manufacturing high-quality spiral wound pipe production lines for various industries.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SMSG3000, SMSG2000, SMSG1200, SMSG4000
Customized
Customized
After-sales Service
Provide Installation and Debug Service Customized
Spiral Pipe Types
Spiral, Profiled, Corrugated, Inner Reinforced
Delivery Conditions
Fob CIF CIP
Technical Support
Permanent Technical Support
Plastic Spiral Pipe Use 1
PE Water Sewer Pipe, Drainage Pipe
Plastic Spiral Pipe Use 2
Water Storage, Waste Water Treatment Tank
Plastic Spiral Pipe Use 3
Pickling Pool, Septic Tank, Fire Cistern
Plastic Spiral Pipe Use 4
Manhole Wells, Plastic Chamber
Extrusion Line Diamesion
22m*12m*5m
Spiral Pipe Production Line
Spiral Winding Pipe Machine
Water Storage Tank Machine
Water Storage Tank Machinery
PE Spiral Pipe Line 1
HDPE Profiles Extrusion Die Mould
Winding Pipe Machine
Spirally Winding Pipe Machine
Spirally Winding Pipe Machine
Winding Pipe Machine
Welding Extruder Model
Sj45, Sj55, Sj65, Sj75, Sj90, Sj100, Sj120, Sj150
Welding Machine
Plastic Pipe Welding Line
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
DN200-DN2400
Trademark
Sincere Machinery
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
15 Sets\Year

Product Description

PE/HDPE/PP spiral winding water storage tank wells Pipes extruding production machine line
HDPE large diameter hollow wall spiral pipe extrusion line.
HDPE Structural wall winding pipe extrusion line.


*Double-walled corrugated pipes, with "H" structure.

*DN200-DN4000mm
*SN2, SN4,SN8,SN12.5, SN16

**HPDE extrusion spiral winding sewer pipes Appication:

    - Sewage and drainage pipes
    - Storm water drainage pipes
    - Rain water sewage plastic pipes
    - Cable protection pipes
    - Civil construction sewage pipes
    -Chemical storage tank
    - Liquid storage tank
    - Manhole wellbore


Plastic Spiral Wound Pipe Production Line


1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

2. HDPE large diameter hollow wall winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.

3. Technical parameters:

Model SMSG-800 SMSG-1200 SMSG-1600 SMSG-2200/2400 SMSG-3000/4000
Extruder SJ65 SJ55 SJ90 SJ65 SJ100 SJ75 SJ120 SJ90 SJ150 SJ100
Output capacity 250-300kg/h 350-400kg/h 500-600kg/h 750-850 kg/h 1000-1500 kg/h
Pipe diameter 200-800 mm 400-1200 mm 800-1600 mm 1200-2200 mm
800-2400mm
2000-3000mm
2000-4000mm
Production speed 2-16 m/h 2-12 m/h 1-6 m/h 0.5-5 m/h 0.3-3 m/h
Installed Power 180 kw 250 kw 300 kw 400 kw 500 kw

4. Machine Pictures:

Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line

Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line

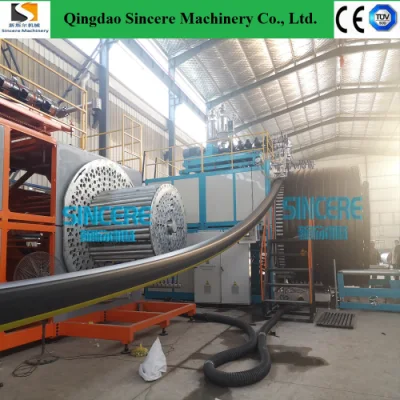

Mass production of hollow-wall Spiral winding pipes extruion Machines

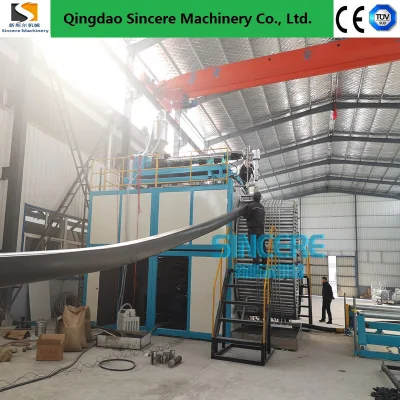

Testing HDPE Hollow wall winding pipe production line in our factory
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line

Spiral corrugated pipes extrusion production line, inner with ribs reinforced.
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line



Solid wall spiral winding pipex extrusion production machine  lines.
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line
Plastic Spiral Wound Pipe Production Line



Steel reinforced HDPE extrusion spiral sewage wining pipe extruding machinery lines.


HDPE extrusion spiral winding pipes machine, Hollowness wall spiral winding corrugated pipes HDPE extrusion production machine lines.

Our cooperation process:



Plastic Spiral Wound Pipe Production Line
