Parameters Such as Blowing Time Can Be Set

BlowTek - Blowing Time Setting Product | Quality factory-made product with customizable parameters such as blowing time for precise control. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Voltage
380V/50Hz, Customized
After Warranty Service
Video Technical Support, Online Support
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Applicable Industries
Biological Laboratory, Pharmaceutical Workshop
Dimension(L*W*H)
Customized
Sealing Form
Inflatable Seal
Lock System
Electronic Interlock
Material
Stainless Steel 304/316L
Filter
H14 Filter
The Floor Drain
Conical Drainage Floor Drain
Control System
Siemens PLC
Surface Treatment
Surface Polishing
Fog and Shower Time
Time Can Be Set
Transport Package
Standard Export Plywood Wooden Case
Specification
1450*1200*2450mm
Trademark
BIOGREEN
Origin
Jiangsu, China
Production Capacity
1000 PCS/Month

Product Description

Parameters Such as Blowing Time Can Be Set
Introduce:

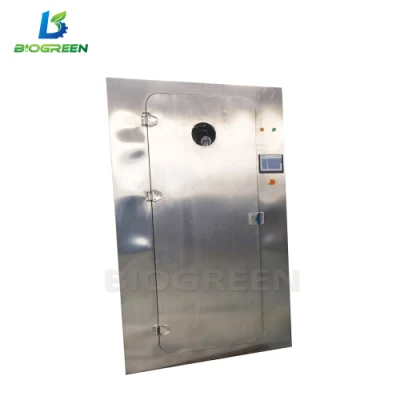

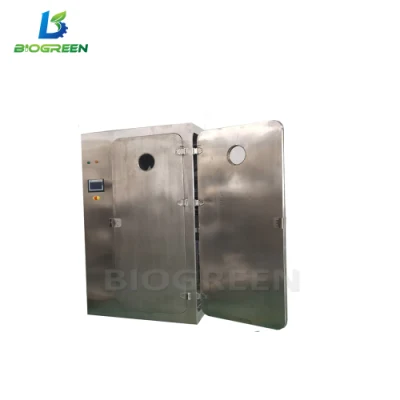

In addition to the air blowing function of ordinary air shower room, the fog shower room also adds the water mist
blowing function, which is suitable for pharmaceutical and chemical enterprises of "toxic dust". The high-pressure
pump is used to compress the water and spray it out in a fine mist through the copper nozzle to wet the dust
adhered to the work clothes, so that the dust of the staff's clothes does not flutter.

It is specially used in the core area of P3 / P4 biological laboratory or high demand pharmaceutical plant for
disinfection and sterilization. It is a compulsory shower measure when personnel leave the workshop. It has the
characteristics of high degree of isolation, high degree of comfort and EHS.

Forced shower system is a forced shower measure taken to ensure personnel's physical adaptability and high
biological risk area when going out in special environment.


Parameter:
Model External dimensions
W×D×H(mm)
Workspace size
W×D×H(mm)
wind speed
(m/s)
Number of atomizing ports HEPA filter
L×W×D
BD-FS-1200-P 1200×1000×2150 800×900×1950 25 6 650×650×93×1
BD-FS-1400-P 1400×1000×2150 800×900×1950   12 650×650×93×2
BD-FS-1500-P 1400×1500×2150 800×1400×1950   18 955×650×93×2
BD-FS-2000-P 1400×2000×2150 800×1900×1950   24 650×650×93×4
BD-FS-3000-P 1400×3000×2150 800×2900×1950   36 955×650×93×4

Advantage:
1. The high-speed nozzle with a speed of more than 25m / s can ensure effective blowing and drenching to
remove particles.
2. Interactive control panel.
3. High efficiency filter, 0.3 micron particle filtration efficiency reaches more than 99.99%.
4. Disposable pre filter G4 extends the service life of high efficiency filter.
5. The emergency stop button is installed inside the air shower room.
6. When people enter the air shower room, the equipment automatically senses and starts the air nozzle.
7. Interlocking door system.


Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set Parameters Such as Blowing Time Can Be Set
