High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line

Discover our high-quality direct selling zinc coating hot dip galvanized wire machine production line. As a factory, we ensure top-notch manufacturing standards.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Machine Introduction
  • Machine Specification
  • Mechanical Advantage
  • Company Information
  • Customer and Market
  • Our service
  • FAQ
Overview

Basic Info.

Condition
New
Weight (Kg)
22000
Wire Diameter
0.9-1.6 mm
Zinc Coating Thickness
30-60 G/M²
Number of Wires
40-70 Line
Wire Spacing
30 mm
Annealing Method
on Line Annealing
Wire Take-up System
Elephant Trunk or Inverted Co
Zinc Layer Control
Wipe System
Dry Wire System
Waste Heat Recovery
Pickling System
Smokeless Environmental Protectio
Transport Package
Main Mechanical Plastic Packaging and Steel Wire F
Specification
ISO/ SGS
Trademark
KAIYE
Origin
an Ping He Bei China
HS Code
8543300090
Production Capacity
10 Set/Month

Product Description



Machine Introduction



High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line

Technical solution.

Automatic spool wire pay-off system→ Natural gas online annealing furnace → Overflow water cooling cleaning → Environmental protection pickling → Overflow water cleaning → Auxiliary galvanizing → Baking board drying treatment → Hot dip galvanizing → Clean → Water cooling → Trunk wire take-up system


Machine Specification



Hot dip galvanized wire production line specifications
Wire diameter
0.9--1.6 mm
Zinc coating thickness
30--60 g/m²
Number of wires
40--70 line
Wire spacing
30 mm
Annealing method
On line annealing
Zinc layer control
Wipe system
Wire pay-off system
Wire spool
Wire take-up system
Elephant trunk or inverted coils type



Mechanical Advantage



High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line



Wire pay-off system.

The I-wheel paying off adopts a damping paying off frame, and the tray is equipped with a constant tension device to control the paying off tension, so as to make the steel wire walk smoothly and stably.

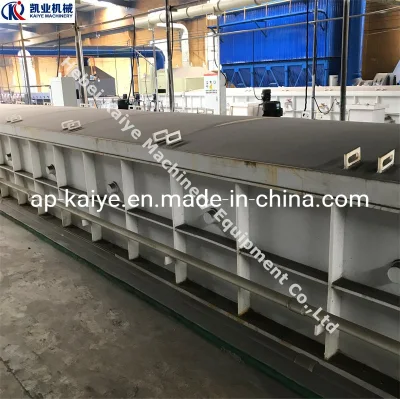

Natural gas online annealing furnace.

It adopts natural gas eye brick annealing furnace, box steel structure, segmented bolt assembly of furnace body, welded steel structure of furnace body shell, good overall sealing performance, segmented assembly, reducing on-site installation time.

High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line



Water cooling tank.

The cooling tank is used to control the temperature when the steel wire enters the pickling tank, ensure the stability of pickling tank workers and clean the impurities on the steel wire surface.
Smokeless pickling.

Turbulent smokeless pickling is an advanced pickling technology. The steel wire cleaning process is in a completely closed pickling space, which is suitable for the rapid cleaning process of steel wire and meets the speed requirements of hot galvanizing.

High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line



Zinc ingot.

We can provide zinc ingots, and customers can also purchase zinc ingots from China or their own countries.
Zinc pot.

Zinc pot is welded with 08 steel zinc pot special plate and has natural gas external heating structure. The temperature of zinc pot is controlled by corrosion-resistant thermocouple.



Company Information


High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
Factory workshop.
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: straight line wire drawing machine,Pulley wire drawing machine, wet drawing machine, Stainless steel wire drawing machine, Galvanized wire production line, Wire winding machine, Galvanized wire production line,And other wire drawing supporting machinery.
High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working experience of each engineer is more than 8 years.

Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.



Customer and Market

High Quality Direct Selling Zinc Coating Hot DIP Galvanized Wire Machine Production Line


Friends from all over the world.


The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.

After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.



Our service


Pre-Sales Service.

*Inquiry and consulting support.
*Sample testing support
*View our factory
*Airport and station pick-up service
After-Sales Service.

*Training how to instal the machine, training how to use the machine.
*Engineers available to service machinery overseas.

FAQ

Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.

Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.



If you are interested in our machines,
please contact us now,
We will provide you with professional and reasonable solutions.

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
