Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine

Get top-notch straight line wire drawing machines from our factory. Our Good Quality Iron Wire Steel Wire machines are reliable and efficient. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Accessory equipment
  • Certifications
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
LZ-560
Max.Inlet Wire Dia.
10mm
Block Dia.
560mm
Max. Number of Block
12
Certification
ISO
Condition
New
Core Components
Gearbox, Gear, Bearing, Motor, PLC
Max Speed of Drawing
900m/Min
Transport Package
Cartons
Specification
13400*1730*23501570mm
Trademark
SSS
Origin
China
Production Capacity
50sets/Month

Product Description

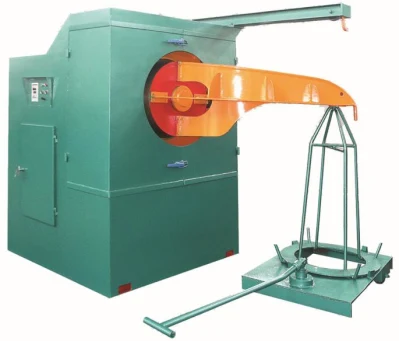

Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine


The main features of the stainless steel wire straight line wire drawing machine are that the drum adopts narrow slot water cooling, and the drawing die adopts direct water cooling; the cooling effect is good; the transmission efficiency is high and the noise is low; the fully enclosed protection system is adopted, and the safety is good; the air tension tuning is adopted, and the drawing is stable.
Different from the ordinary wire drawing machine, the straight wire drawing machine adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawing products. It is suitable for drawing various stainless steel wires with diameter less than 14mm.
Main Features
1) Easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range
of technology and high speed drawing.


5)Good cooling system, final wire quality is very good.


Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine
Product Parameters
Model
300
350
400
450
500
560
600
700
800
Strength of inlet wire (Mpa)
≤1250
Drawing passes
2-11
2-11
2-11
2-12
2-12
2-12
2-12
2-9
2-9
Max.φ of inlet wire(MM)
2.8
3.5
4.2
5.0
5.5
6.5
8
10
12.7
Min.φ of inlet wire(MM)
0.5
0.6
0.75
1.0
1.2
1.1
1.6
2.2
2.6
Fastest wire Drawing speed(M/S)
25
20
20
16
15
15
12
12
8
Power(KW)
7.5-18.5
11-22
11-30
15-37
22-45
22-55
30-75
45-90
55-110
Accessory equipment

Name
Model
Range of Dia.
Discharging Machine


Pointing Machine
F-96
6.5-2.0mm
Pointing Machine
F-80
3.5-1.0mm
Butt-Welding Machine
UN-10
8.0-2.0mm
Butt-Welding Machine
UN-3
6.5-2.0mm
Butt-Welding Machine
UN-1
3.5-1.0mm
Automatic Discharging Machine
XB-600
capacity 800kg
Automatic Discharging Machine
XB-360
capacity 400kg
I Type Spool Reeling Machine
SG-800
capacity 800kg
I Type Spool Reeling Machine
SG-630
capacity 500kg
Descaling Machine
SW650

Motorless Descaling Machine
with steel brush

Well Type Furnace
RJ-90-9

Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine
Brand
SSS
Model
F-96
Custom-made
YES
Function
Pointing to wear mode
Power
3KW
Dimension
400*400*1300(MM)
Weight
200KG




Description
Pointing machine is a kind of machine for rolling thread head, common thread head machine
is suitable for rolling the diameter of 13mm below the soft steel wire and medium carbon steel wire, etc., easy to operate.



Good Quality Iron Wire Steel Wire Straight Line Wire Drawing Machine
Descaling Machine
The application of wire-drawing acid-free rust remover has replaced the traditional processes of peeling, pickling, washing,coating and drying.
Continuous production greatly reduces the production process, shortens the production cycle and significantly improves the
production efficiency.Termination costs.
1
Wire drawing drum material
Cast steel, tungsten coating and surfacing, HRC60. Roughness is less than 0.8umm
2
Drum cooling
1. Drum inside cooling: drum's inner wall has 3 water channels which displayed in 120 degrees direction by water spraying.
2. Drum external cooling: the ventilation pipe below the outside of the drum uses 360 degrees of forced air cooling on the surface of the drum and wire to lower the surface temperature of the reel below 80 degrees
3
Die box cooling way
The drawing die is cooled by using direct water inlet and outlet water, and the cooling effect is especially good
4
Tension machine
Built-in
5
Main frame
Steel plate and square tube welding
6
Safety device
Safety protection cover, broken line stop test
7
Vacuum design
Vacuum cleaning hole
8
Lighting
Each machine is equipped with separate lighting
9
Parking brake
Pneumatic brake
10
Electric cabinet
Protection level IP54
11
Electrical system
Machine distribution structure, PROFIBUS-DP field bus control
12
Energy consumption
Monitoring is equipped with electricity meter
13
PLC
HUICHUAN (Inovance) brand
14
Touch screen
HUICHUAN 10inch screen
15
Frequency motor brand
Fangda
16
Low voltage apparatus
Zhengtai
17
Inverter
HUICHUAN (Inovance) brand
18
Sensor
OMRON
19
Field cable supply
The dedicated control line is provided by the seller, and other control cables and power cables are provided by the buyer
