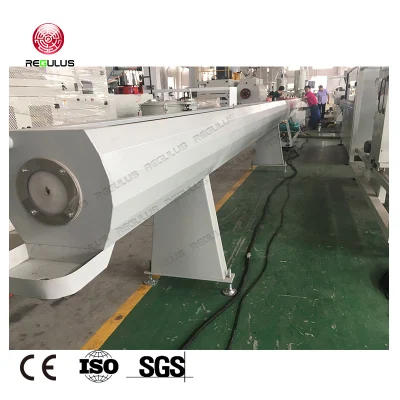

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine

Produce high-quality drainage pipes with the Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine. Factory-direct prices!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Specification
  • Packaging & Shipping
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
J65/30-33, SJ75/30-33
Customized
Customized
Condition
New
After-sales Service
Provided
Plastic Processed
PP, PE, PPR
Colour
Customer Choice
Automatic Grade
Automatic Control
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Const
Screw Design
Single-Screw
Cooling Type
Oil, Water
Processing Type
Extruding Machine
Lnverter
ABB Inverter
Control
PLC
Key Selling Points
Automatic, High Productivity
Screw Diameter
65mm
Screw Speed
50rpm
Screw Material
38crmoala
Voltage
3phase, 380V, 50Hz or Custom-Made
Power
120kw
Transport Package
Wooden Box
Specification
20m*2.5m*2.2m
Trademark
regulus
Origin
China
HS Code
847780
Production Capacity
350

Product Description

Product Description

Machine Introduction
The line is used for extrusion of PP-R,REX or PE-RT pipes.PP-R pipe are non-toxic,heat-resistant,It can beeasily welded by hot-melting method and recycleable.PEX pipes does not need the cross-link process,and it also be recycled.This line is assembled lattice or spiral mould.Two section vacuum calibration unit and spraying cooling bath.After simply changing the mould,it also becomes possible to produce ABS,PP composite pipe.

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine Flow chart of extruder plastic machine:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)
The extrusion line consists of several components and processes that work together to produce PPR pipes of various sizes and specifications. Here is a brief overview of the typical components and their functions:
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
1. Raw Material Handling:

The PPR extrusion process begins with the handling of raw materials. PPR resin, along with additives like stabilizers,antioxidants, and colorants, is fed into the extrusion line.
2. Extruder:

The extruder is a key component of the extrusion line. It melts and homogenizes the PPR resin and additives,forming a

consistent melt. The extruder consists of a barrel, where the material is heated and mixed,and a screw, which conveys the molten
material forward.
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
3. Die Head:

The die head is responsible for shaping the molten PPR material into a pipe. It has an opening orifice that defines the outer diameter of the pipe and may include additional features like co-extrusion layers or markings.

4. Vacuum Sizing Tank:

After exiting the die head, the molten PPR material enters a vacuum sizing tank. The tank is filled with water, and its purpose is to cool and solidify the material while maintaining the desired shape and dimensions. Vacuum is applied to ensure uniform cooling and prevent deformations.
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
5. Haul-off Unit:

The haul-off unit consists of caterpillar-type traction belts that grip the solidified pipe and pull it through the extrusion line at a controlled speed. This process helps to maintain the dimensional accuracy of the pipe and provides tension for subsequent stages.
6. Cutting Unit:

Once the pipe has been pulled through the extrusion line, it is cut into the desired lengths. Different cutting mechanisms can be employed, such as a saw, guillotine cutter, or planetary cutter, depending on the required precision and production speed.
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine

Overall, the PPR pipe extrusion line is a complex and automated system that combines different processes to produce high-quality PPR pipes. The line can be customized to meet specific production requirements, such as pipe diameter, wall thickness, and output capacity.
Specification



Pipe range (mm) 16-63 20-110 75-160 90-250 110-315 160-450 315-630
Extruder 65/30 65/33 75/30 75/33 90/33 90/33 120/33
Motor power(kw) 30/37 55/75 75/90 90/110 132 160 280
Capacity(kg/h) 100-150 200-300 200-300 220-350 300-400 350-450 600-600
Max.speed 15m/min 10m/min 8m/min 6m/min 3m/min 1.2m/min 1.0m/min

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine


Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
Packaging & Shipping

PACKING AND DELIVERY

REGULUS company delivery machinery by ship, train, truck, air to customers.
All packages are well fixed and transported safely.
Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine

Certifications

CERTIFICATION

Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine Energy Saving Regulus Machinery PPR Farm-Oriented Irrigation Pipe Extruded Drain-Pipe Making Machine
FAQ

FAQ

More information of Plastic Agglomerator
Q: How to contact you if I am interested with your machine?
A: You can contact us via Alibaba, we will reply you ASAP.
Choose model of Agglomerator
Q: Which Agglomerator model is suitable?
A: You could send us your raw material pictures, and tell us how many kg you plan to agglomerate in one hour. We will recommend you the suitable model.
Delivery time
Q: If I need the machine urgently, can you send to me on time?
A: We have enough storagein our warehouse, and the storage ranges from the main machines to the small spares. we can assemble and test the machine in a very short time and send to you by the fastest speed.
Electric voltage of Agglomerator
Q: China industrial power supply is 3phase, 380V, 50Hz, can your company custom-made different electric voltage?
A: Yes, besides 3phase, 380V, 50hz Agglomerator machine, we can custom-made different electric voltage according to different country clients requirement. Such as 3phase, 220V, 60Hz, 240V, 415V, 440V, 480V.
First cooperation
Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
