CIP System for Beer Brewery

Discover our state-of-the-art CIP System for Beer Brewery at our factory. Efficient cleaning and maintenance for optimal brewing processes.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Transport Package
LCL or FCL
Specification
100L~5000L
Trademark
Jinggong
Origin
Zhejiang, China
HS Code
8438900000
Production Capacity
20 Sets/Year

Product Description

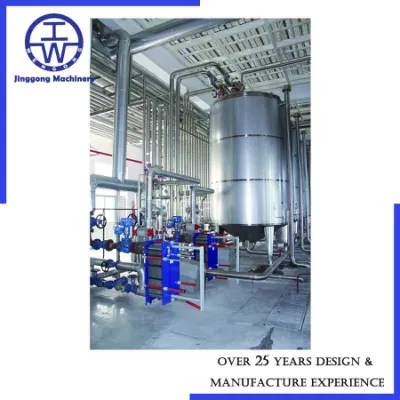

CIP System for Beer Brewery
Beer factory equipment CIP system clean in place equipment

System introduction:
★ The complete CIP design for pure draft beer is divided into 4 parts: pre-filter cooling CIP, pre-filter heating CIP, post-filter cooling CIP, filtered hot CIP, and interception of cross-contamination.
★ This system not only considers the cleaning of tanks and pipelines but also the cleaning of the filtration system; the CIP tank itself can be self-cleaning.
★ The system can be manual, semi-automatic and fully automatic control: including temperature, pressure, liquid level, concentration, flow control.
★ The process includes: hot water washing, hot caustic washing, cold caustic washing, pickling, disinfecting liquid washing, water washing, deoxygenated water washing, brewing water washing and so on.
★ Major equipment: hot water tanks, hot caustic tanks, cold caustic tanks, acid tanks, disinfectant tanks, recovery tanks, brewing tanks, CIP transfer pumps, heaters, automatic acid-alkali addition pumps, conductivity meters, ultraviolet disinfection Etc.


Features:
★ The design layout is reasonable, the equipments are made of imported 2B stainless steel material, the internal surface polishing is ≤ 0.4μm, the external surface is ≤ 0.8μm, and the overall appearance of the equipment is generous;
★ Recycle alkaline water and steam, save energy, meet the cleaning process requirements of various sections, and increase efficiency;
★ The operator only needs to configure the concentrated alkali solution and convert the CIP feed distribution plate for each shift; other tasks can be automatically controlled, manual monitoring is performed, and a touch monitor is provided to display all the system parameters of the intuitive CIP cleaning station and can be Cleaning process to facilitate the modification of parameters;
★ Automatically monitor the concentration of the washing liquid in the tank and automatically add the concentrated washing liquid;
★ Automatic monitoring of tank washing level, automatic water supplement;
★ automatic detection of reflux concentration, automatic selection of reflux or emissions;
★ Automatic control of the temperature of the liquid in the outlet, and the automatic control of the liquid material in the outlet.


CIP System for Beer Brewery
CIP System for Beer Brewery
CIP System for Beer Brewery
CIP System for Beer Brewery

We can customize the equipment according to your request!!!
Please feel free to contact with us at your convenience,we will come back to you as soon as possible .
