1500t Imm Robot 3 Axis 20kg Load Sprue Picker Manipulator

Introducing the 1500t Imm Robot 3 Axis 20kg Load Sprue Picker Manipulator for factories. Increase efficiency and productivity with this advanced robotic system.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
QTN1500WS-S3
Application
Sprue Pick
Slider Rail
Imported From Japan
Motor
Imported From Japan
Driver
Imported From Japan
Speed Regulation
Imported From America
Transport Package
Plywood Carton
Specification
QTN1500WS-S3
Trademark
Esun
Origin
China
HS Code
8428909090
Production Capacity
20 Sets Per Day

Product Description

1500T IMM robot with 3 axis and 10KG load for big dimension products picking from injection mould machine.Key Driver and Motor is Panasonic From Japan and Balance Key Components imported from German and Taiwan

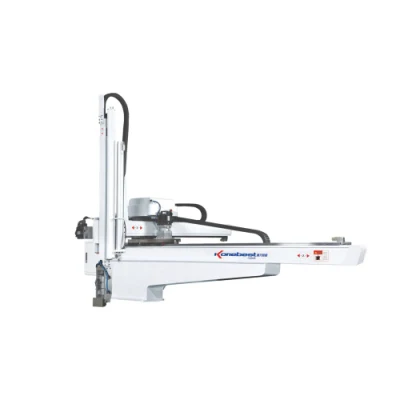

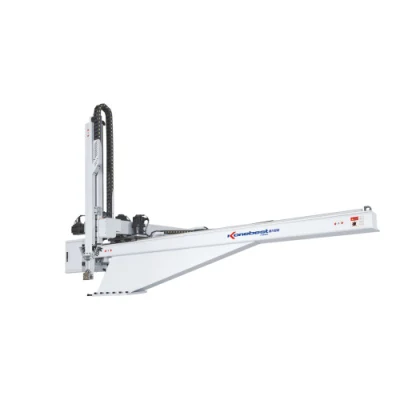

1500t Imm Robot 3 Axis 20kg Load Sprue Picker ManipulatorProduct Detial View
1500t Imm Robot 3 Axis 20kg Load Sprue Picker Manipulator

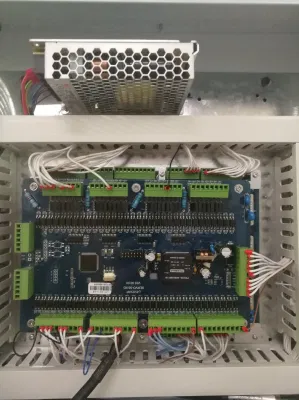

1500t Imm Robot 3 Axis 20kg Load Sprue Picker ManipulatorTouch Screen Tech Box
1500t Imm Robot 3 Axis 20kg Load Sprue Picker Manipulator

Description of Servo Motor Industrial Robotic Arm:



QTN1500WS-S3:

Features of Servo Motor Industrial Robotic Arm:



1.All three axis driven by powerful AC servo motor,high stability, fast, compact,heavy duty.

2.Very compact vertical telescopic arm for low overall height and double speed for short in/out time.

3.The integrated control cabinet is mounted behind the horizontal axis for saving valuable space.

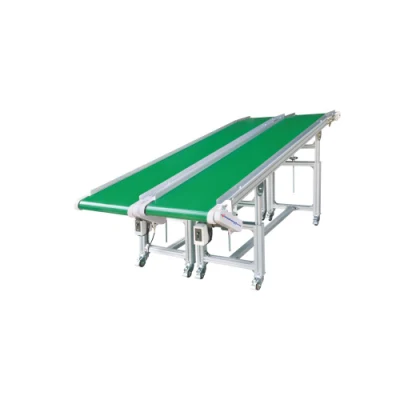

4.The integrated control cabinet allows electrical connection of external I/O modules for additional peripheral equipment,like conveyor belt,vibration plate.

5.Additional Y&X axis are available while Z-axis is the standard one, for flexibilities of placing the parts in different orientation.

6.Additional arm is available for the removal of sprues from 3-plate molds.

7.Additional arm is available for the removal of parts from stake molds.



Specification of Servo Motor Industrial Robotic Arm:
1500t Imm Robot 3 Axis 20kg Load Sprue Picker Manipulator







Key Components list of Servo Motor Industrial Robotic Arm:



Key components  Brand  Origin Of Brand
Control system  Langyuxin and Huacheng china
Servo motor  Panasonic  Japan
Servo driver  Panasonic  Japan
Vacuum generator  MCHMALZ  France
Vacuum pump  Baker  Genmany
Electrostatic generator  SIMGO American
Slide  THK and PMI Japan Taiwan
Wire  Igus  Genmany
Speed regulation valve  Parker  American
Air cylinder  HINAKA  Taiwan
Reducer  ZhongDa china
Solenid Valve  SMC/Mindman  Japan/Taiwan



 Application of Servo Motor Industrial Robotic Arm:



Application products: Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.



Why Choose kone:

1.10 years experience in the industry of Servo Motor Industrial Robotic Arm .

2.All components are new, some core components are imported from German(Festo/Igus),Japan(NSK/THK/Omron/Panasonic),France(Schneider/Legris),Italy(Elatech) etc.

3.We do 100% testing before shipment.

4.Warranty are12 months for all products.

5. Provide professional automation system by customize requirements, saveing time and cost for you, enjoy the one-stop shopping.

6.Stand by service, our engineer or technician will visit your esteemed company for installation and debugging of machine.



Contact us:

Please feel free to contact us, we will reply within 24 hours.

We want to know:

1.What is the brand and weight for injection molding machine ?

2.How many products can be produced for one mold ?

3.Whether the product connects with the gate or not ?

4.What is the forming cycl for product ?

5.Could you pls send me the picture of product and description for product ?

6.How many robot arms do you want ?

7.Is your machine two-plate mold or three-plate mold ?

8.What is the height of crown block ?



FAQ:

1.What is your minimum order quantity?

Esun: Minimum order quantity is one set.

2. Could you advise payment terms?

Esun: We accept both LC and TT.



3.Could you send technical personnel to our company and instruct installation of machine for free?

Esun: Our technician or engineer will visit customer's company for machine's installation and debugging. Customer will bear the of the technician/engineer's travel cost and accommodation, and provide assistance for visa application.

4. Are you a trader or manufacturer?

Esun:We are both, Esun produce products and is permitted to import&export products.
