Basic Info.
Model NO.
HP40
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump
Transport Package
Carton Box
Specification
265*250*280mm
Trademark
HAILIN
Origin
Fuzhou China
HS Code
8413910000
Production Capacity
10000piece/Month
Product Description
| Model | HP40/ 1.5 inch | HP40-2/ 1.5 inch | HP50/2 inch | ||||
| Inlet inch (mm) | 1.5"(40mm) | 1.5"(40mm) | 2"(50mm) | ||||
| Outlet inch (mm) | 1.5"(40mm) | 1.5"(40mm) | 2"(50mm) | ||||
| Max.head (m) | 55 | 80 | 50 | ||||
| Suction lift (m) | 5 | 5 | 5 | ||||
| Max.flow (L/min) | 450 | 300 | 450 | ||||
| Pump body | Aluminium alloy | Aluminium alloy | Aluminium alloy | ||||
| Impeller | Aluminium alloy | Aluminium alloy | Aluminium alloy | ||||
| Mechanical seal | Carbon-Ceramic | Carbon-Ceramic | Carbon-Ceramic | ||||
| Driving power (KW) | 5.2 | 4.8 | 5.2 | ||||
| Working speed (rpm) | 3600 | 3600 | 3600 | ||||
| Dimension (mm) | 265*250*280 | 265*250*280 | 365*305*240 | ||||
| Weight (kg) | 5KG | 6.5KG | 10KG |

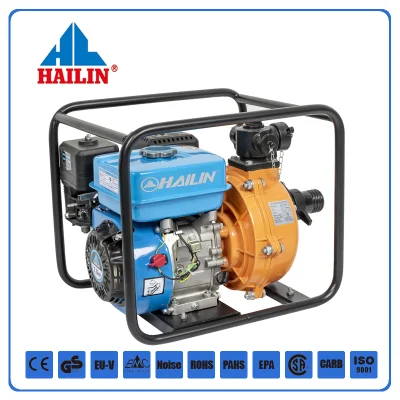

High pressure pump
Pump body, diffuser and impeller made by strengthen aluminum alloy, light and portable.
Has triple outlet (1.5"x1, 1"x2) for two kinds of performance.
High quality ceramic mechanical seal.
Optional puly with support for various application.
Optional single impeller, twin impeller. brass impeller, aluminum impeller.
High pressure pumpPump body, diffuser and impeller made by strengthen aluminum alloy, light and portable.
Has triple outlet (1.5"x1, 1"x2) for two kinds of performance.
High quality ceramic mechanical seal.
Optional puly with support for various application.
Optional single impeller, twin impeller. brass impeller, aluminum impeller.
